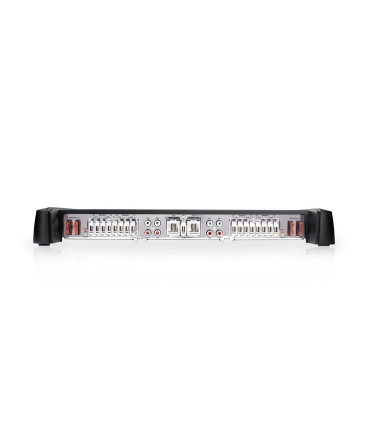

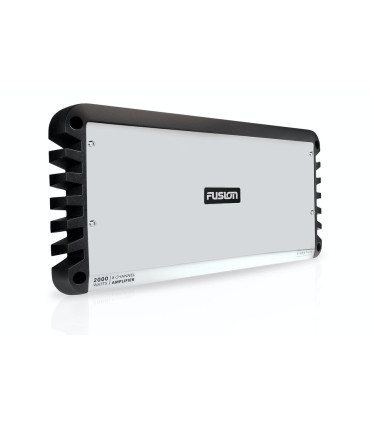

Signature Serijos 8 Kanalų Jūrinis Stiprintuvas
Prekinis ženklas:
| Frequency Response | 10 Hz to 40 kHz (-3 dB @ 4 Ohm rated power) |
|---|---|
| Peak Power Output | 2000 W |
| Rated Power Output (4 Ohm) | 100 W rms x 8 @ 14.4 V input < 1% THD+N (EIA/CEA-490A) |
| Rated Power Output (2 Ohm) | 140 W rms x 8 @ 14.4 V input < 1% THD+N (EIA/CEA-490A) |
| Rated Power Output (4 Ohm Bridged) | 280 W rms x 4 @ 14.4 V input < 1% THD+N (EIA/CEA-490A) |
| Input Sensitivity | 0.3 V to 8 V rms, user adjustable |
| Input Impedance | 7k Ohm nominal |
| High-Pass/Low-Pass Full Range Filter | Yes, user selectable |
| Filter Cross-Over Frequency | 32 Hz to 320 Hz, user adjustable |
| Filter Cross-Over Slope | 12 db/octave |
| Bass-Boost | 0 to 9 dB, user adjustable (zone 2/4 only) |
| Operating Voltage | 10.8 V to 16 V dc |
| Remote Switch-On | Yes - 6 V threshold |
| Current Consumption (Standby) | < 1 mA @ 14.4 V input |
| Current Consumption (Idle) | < 2.5 A @ 14.4 V input |
| Current Consumption (Max) | 100 A @ 14.4 V input |
| Fuse Rating | 4 x 40 A ATC Blade-Type (SAE J1171 Compliant) |
| Protection Circuits | Reverse-Voltage, Input Under/Over Voltage, Over-Temperature, Output Short-Circuit |
| Operating Temperature Range | 0 to 50°C (32 to 122°F) |
| Ingress Protection Rating | Dry area installation only |
| Dimensions | 420 mm (L) x 210 mm (W) x 57 mm (H) or 16-9/16" (L) x 8-1/4" (W) x 2-1/4" (H) |
| Weight | 5.20 kg with cover or 11.5 lb with cover |
| Warranty | 3 years |
